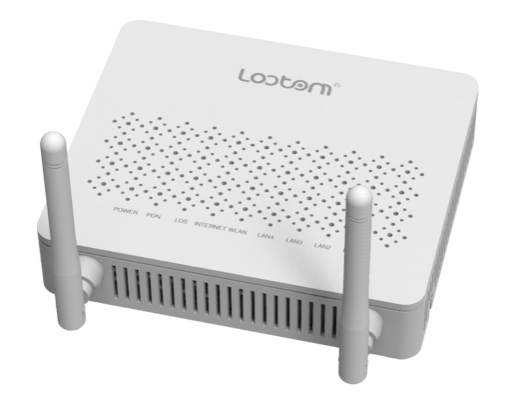

GPON ONU 4FE+WIFI GDONU300-4FW

GDONU300-4FW is a GPON ONU device is designed by Lootom based on mixing and multi-service network is also an GPON ...

Current position：HOME > PON

GPON ONU 4FE+WIFI GDONU300-4FW

Overview        GDONU300-4FW is a GPON ONU device is designed by Lootom based on mixing and multi-service network is also an GPON SFU terminal applied in FTTH/O solution with four 10/100BASE-T ports. It can provide users with high-speed data service and high-quality video service. This series of products follow the international standard ITU-T G.984.x. It possesses good interoperability and maneuverability and it can realize interconnection with the mainstream OLT equipment manufacturers. Features         ● It supports 1.25Gbps up and 2.5Gbps down symmetrical PON transmission rate and it can realize the high split ratio of 1:128 and up the coverage radius to 20 km. and it can truly embody high bandwidth, high user access and long distance access ability of the PON communication
        ● It follows the ITU-T G.984.x GPON standard, and it supports remote management, configuration and maintenance through work with OLT of other manufacturers
        ● Specifically developed VLAN, spanning tree, port isolation, ACL, QOS, security filtration, storm control technology so that the ONU products have the security of business carrying capacity.
        ● Supporting the DBA and Rate - Limit function, advanced dynamic bandwidth allocation mechanism and function of precise bandwidth limitations, that all users can share 2.5 Gbps bandwidth resources more reasonably.
        ● Supporting QOS function, realizing the reliable quality of service, and ensuring that the network service priority and service quality of different business.
        ● Support Telnet remote maintenance and configuration
        ● Support software online upgrade. Technical Specifications              ONU?Basic?Parameter:

Item

GDONU300-4FW

User Networks ports

4 fixed 10/100 MBASE-T self-adaptive RJ45 interface

PON ports

Uplink  transmission rate:1.25GBPS

Downlink l transmission rate:2.5GBPS

Network coverage radius : 20 km

Optical interface type：SC/PC

Optical receiver with high sensitivity : ≥-28dBm

Luminous power：1~4dBm

Dimension

Dimension: 173 mm(W) x 117 mm(D) x 33 mm(H)

Weight: <0.5kg

Installation ：plug and play

Surroundings parameter

operating temperature：0℃～50℃ 10%-85% (no condensation)

storage temperature：-40℃～80℃  5%-95%  (no condensation)

Power supply

DC12V/1A adapter type power supplying

Power consumption

<5W

Body case

Plastic case


             WIFI?Parameter:

WIFI Parameter

Frequency range

2.4~2.4835GHz

Transmission rate

11n：270/243/216/162/108/81/54/27Mbps

135/121.5/108/81/54/40.5/27/13.5Mbps

130/117/104/78/52/39/26/13Mbps

65/58.5/52/39/26/19.5/13/6.5Mbps

135/121.5/108/81/54/40.5/27/13.5Mbps

130/117/104/78/52/39/26/13Mbps

65/58.5/52/39/26/19.5/13/6.5Mbps

IEEE802.11g：

54/48/36/24/18/12/9/6(self-adaption)

IEEE 802.11b ：11/5.5/2/1M(self-adaption)

Working channel amount

13

Screen show

DSSS

Data modulation

DBPSK、DQPSK、CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM)

Sensitivity@PER

135M:-65dBm@10% PER

54M:-70dBm@10% PER

11M:-85dBm@8% PER

1M:-91dBm@8% PER

Transmission distance

Indoor:<120m outdoor:<360m

Outdoor:<360m(depends on the environment)

RF power supply

20dBm EIRP(11b)

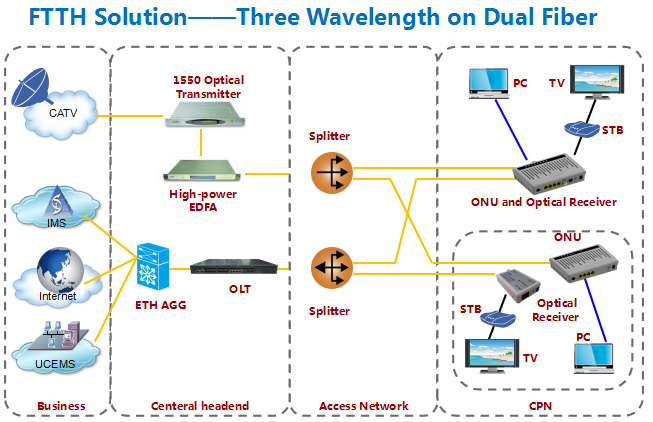

Network diagram
